Napofix® DM1201H – Dual Monitor Free-Stand Desk Mount

Product info

• Product description

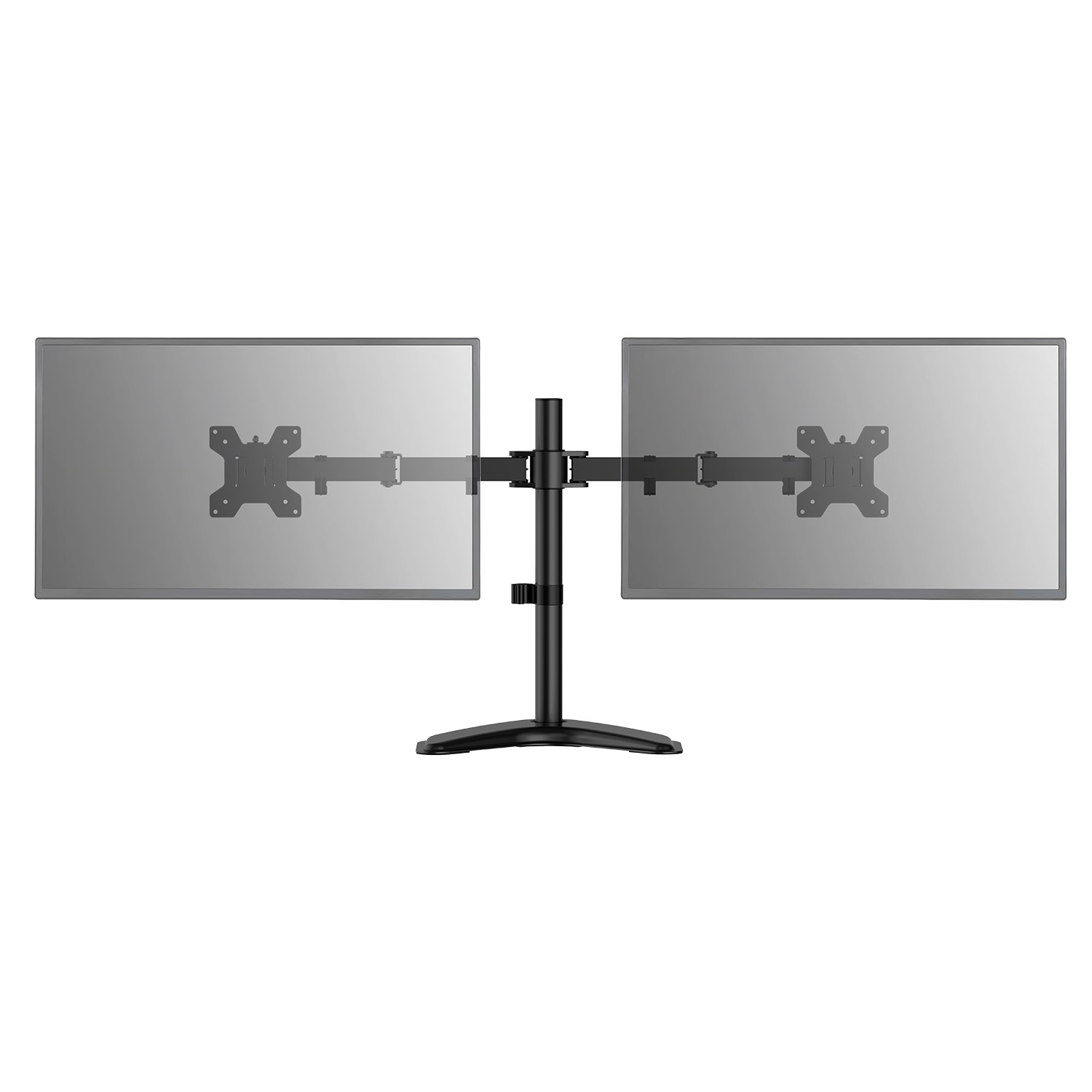

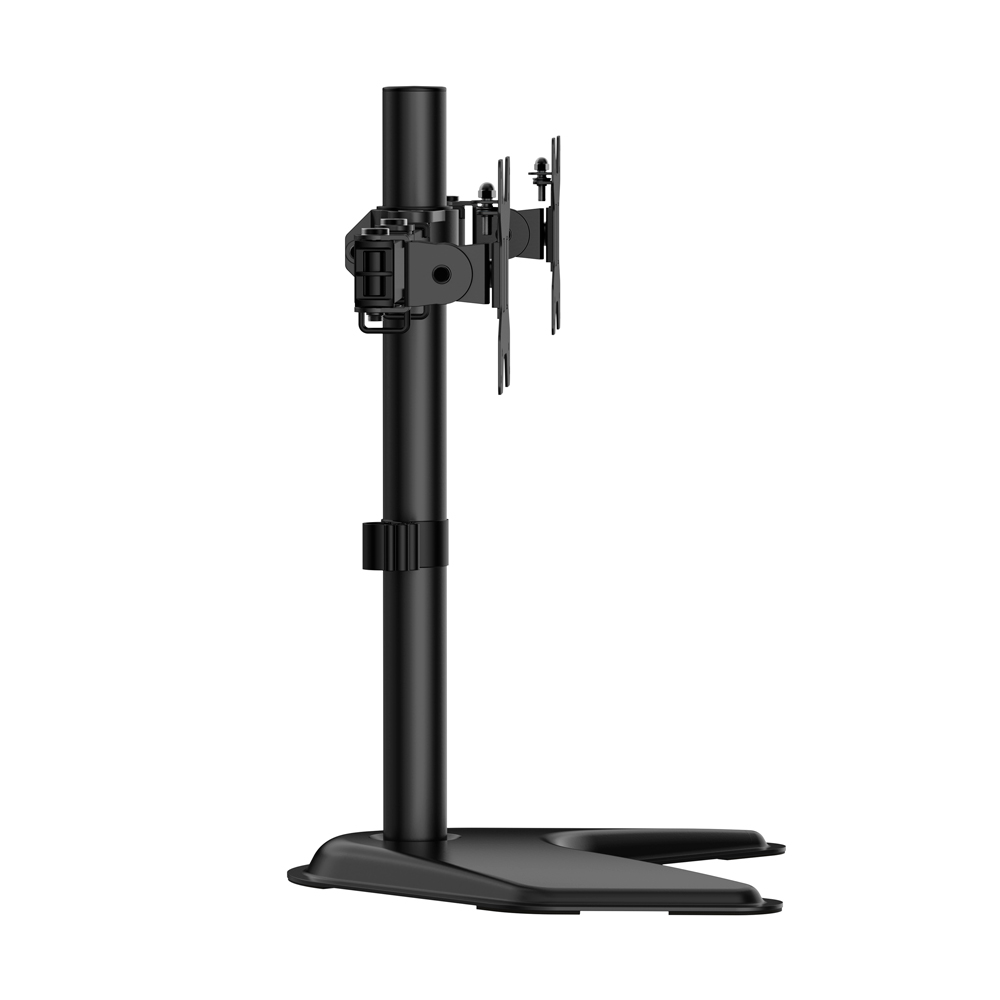

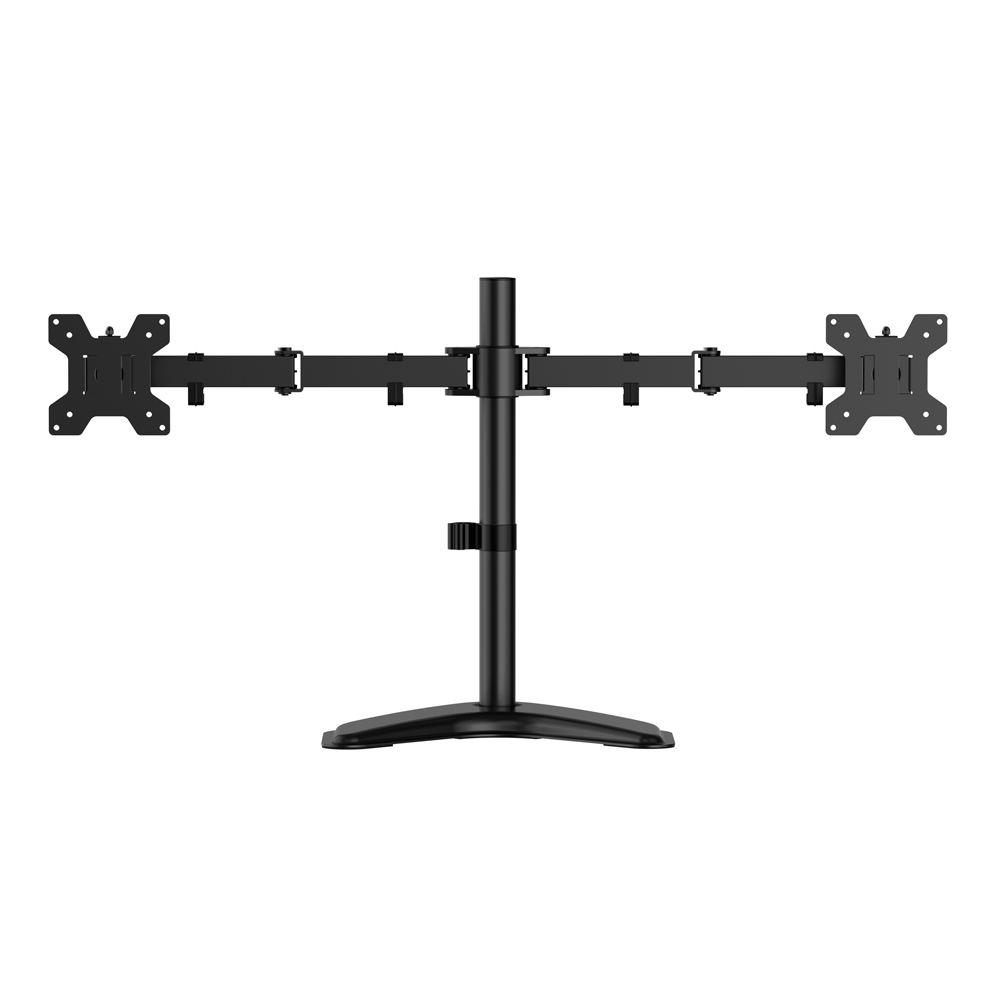

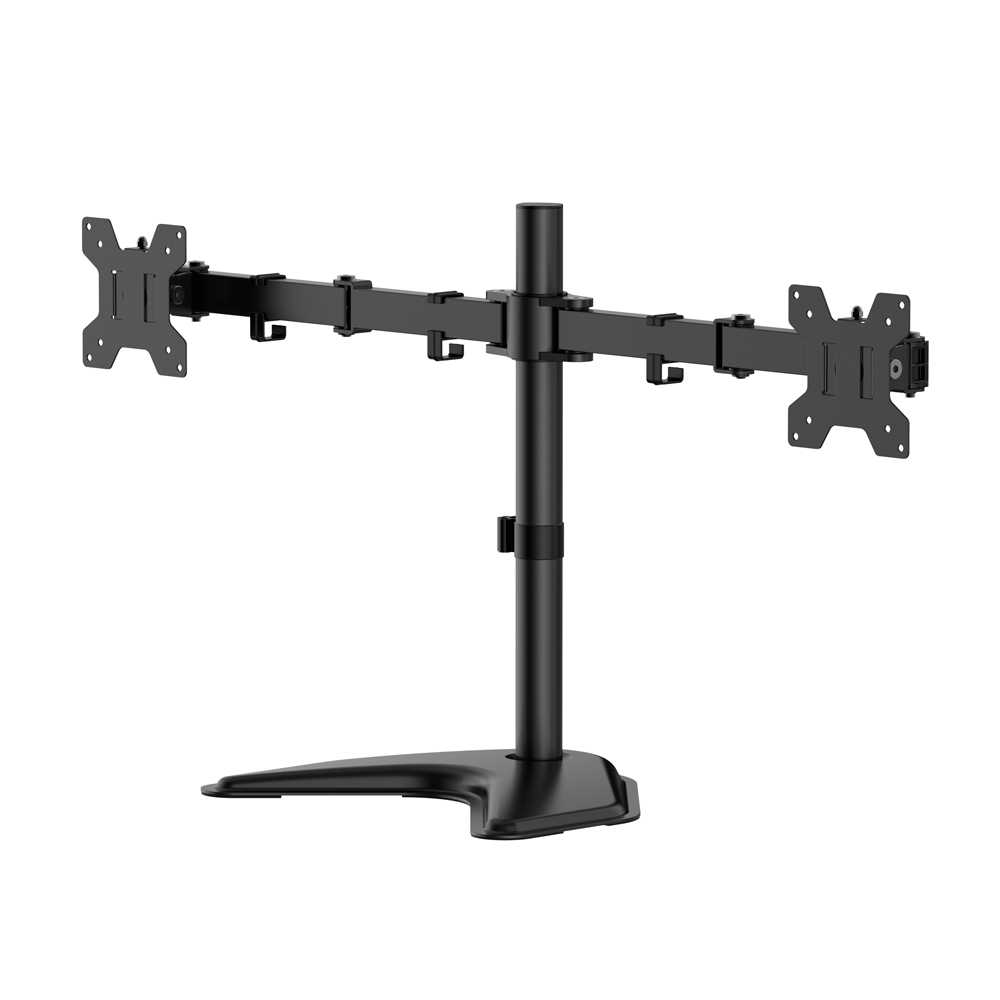

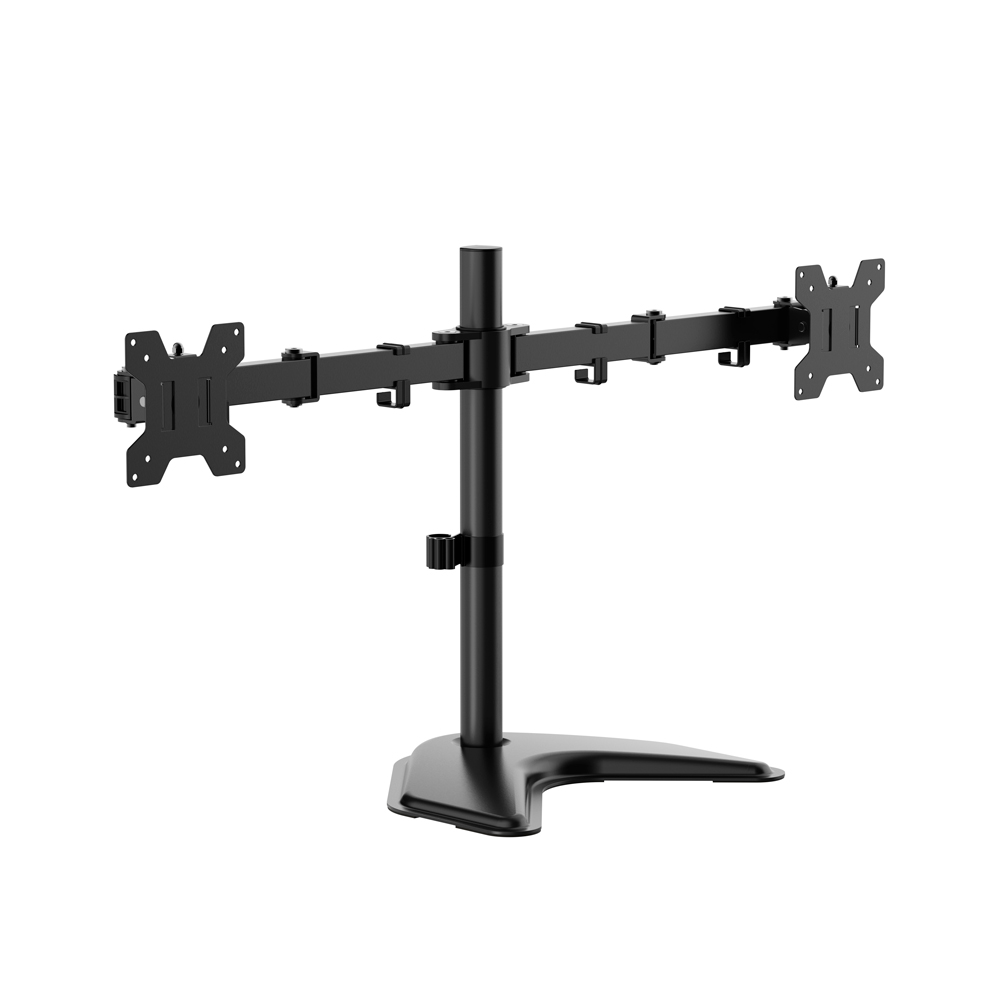

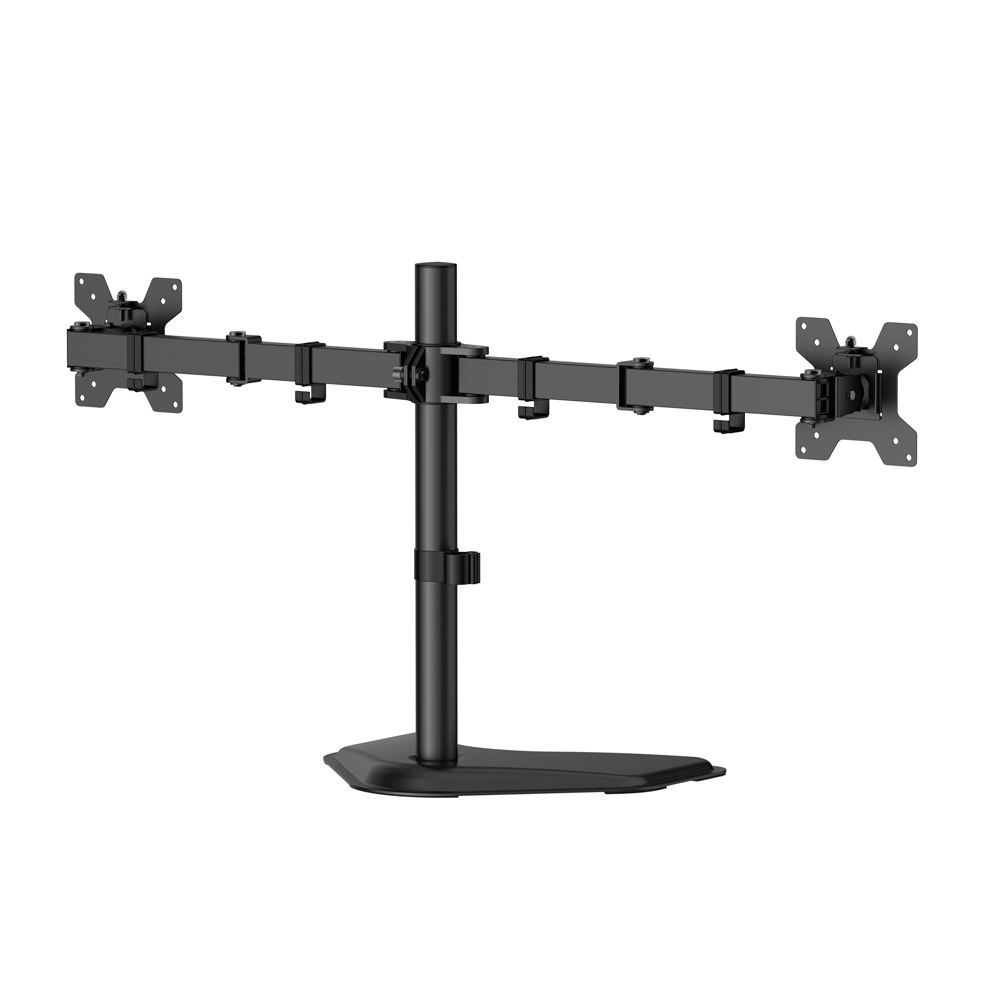

  • The Napofix® DM1201H Dual Horizontal Monitor Free-Stand Desk Mount provides ample positioning for two side-by-side monitors. Made of high-quality steel, can firmly support 13-32'' monitors up to 8kg. ±90°/±180°/±90° swivel and ±45° tilt for perfect viewing angle. ±180° rotation for landscape or portrait mode. Can also adjust monitors' height to a desired position. Tighten or loosen each joint to make your mount as fluid or stationary as desired. Detachable VESA plates make mounting or removal of monitors effortless and easy. Cable clips are included keeping wires neatly organized and safely out of the way.

• Compatibilities
  • Minimum screen size: 13"
  • Maximun screen size: 32"
  • VESA Minimum: 75 x 75 mm
  • VESA Maximum: 100 x 100 mm
  • Vesa: 75 x 75 mm, 100 x 100 mm
  • Load capacity: 8 Kg
• Adjustments
  • Tilt: ±45°
  • Swivel: ±90°/±180°/±90°
  • Rotation: ±180°
  • Nivel: -
  • Depth: - mm
  • Width adjustment: - mm
• Features
  • Warranty: 3 years
  • Wheels: -
  • Detachable VESA: Yes
  • Shelf and Tray: -
  • Strapes: -
  • Anti-Theft Design: -
  • Angled Ceiling: -
  • Finishing: Epoxy
  • Main color: Black
• Logistics

  Logistic data

  • • Box type: Brown box
    • Number of unit boxes: 1

  Box 1

  • • Width: 45.5 cm
    • Depth: 35.0 cm
    • Height: 10.5 cm
    • Gross weight: 4.67 kg
    • Net weight: 3.97 kg

  Box 2

  • • Width: - cm
    • Depth: - cm
    • Height: - cm
    • Gross weight: - kg
    • Net weight: - kg

  Master Box

  • • Type of master box: -
    • Number of unit boxes: -
    • Width: - cm
    • Depth: - cm
    • Height: - cm
    • Gross Weight:
    • Net Weight:
• Downloads
  • Technical Datasheet
  • User Manual
