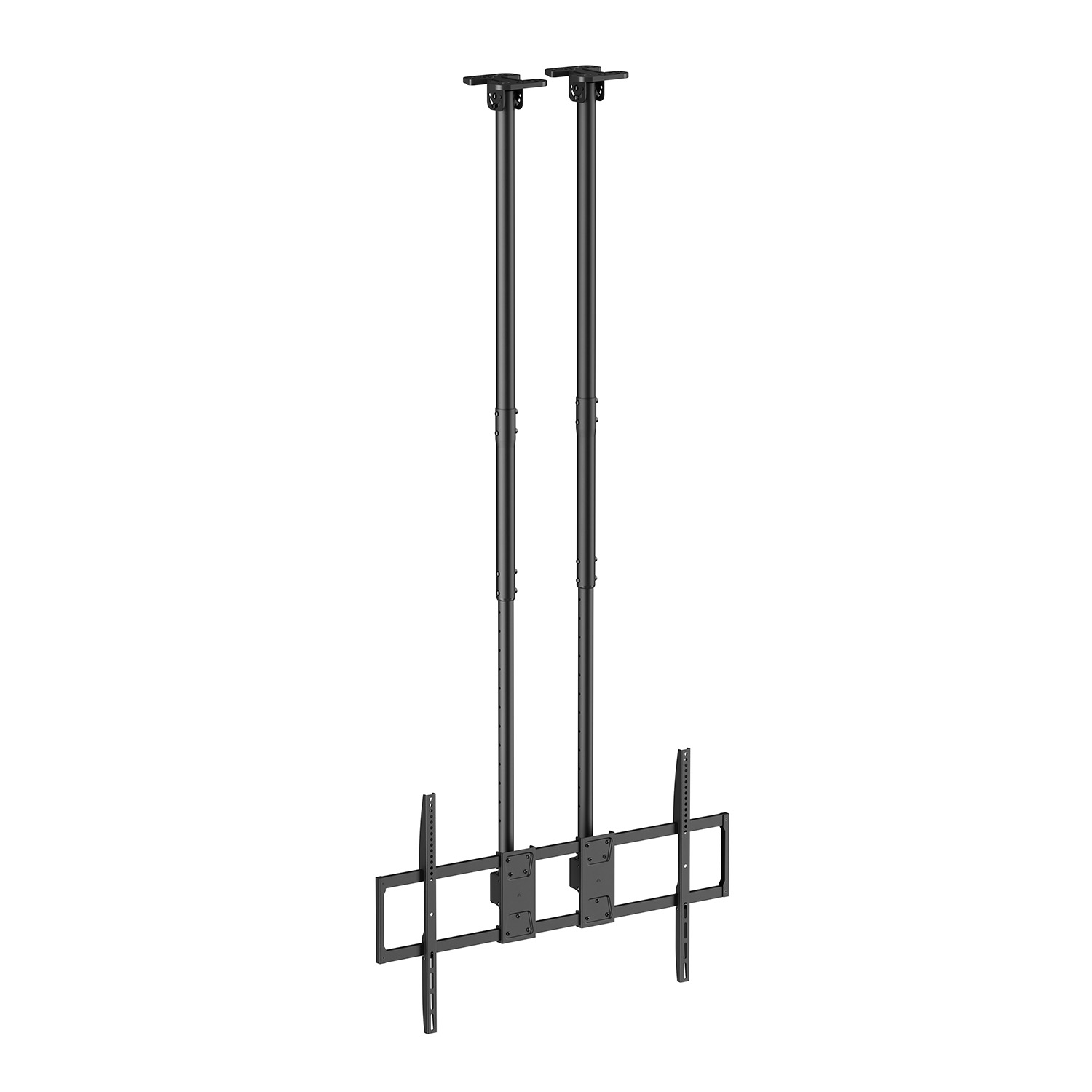

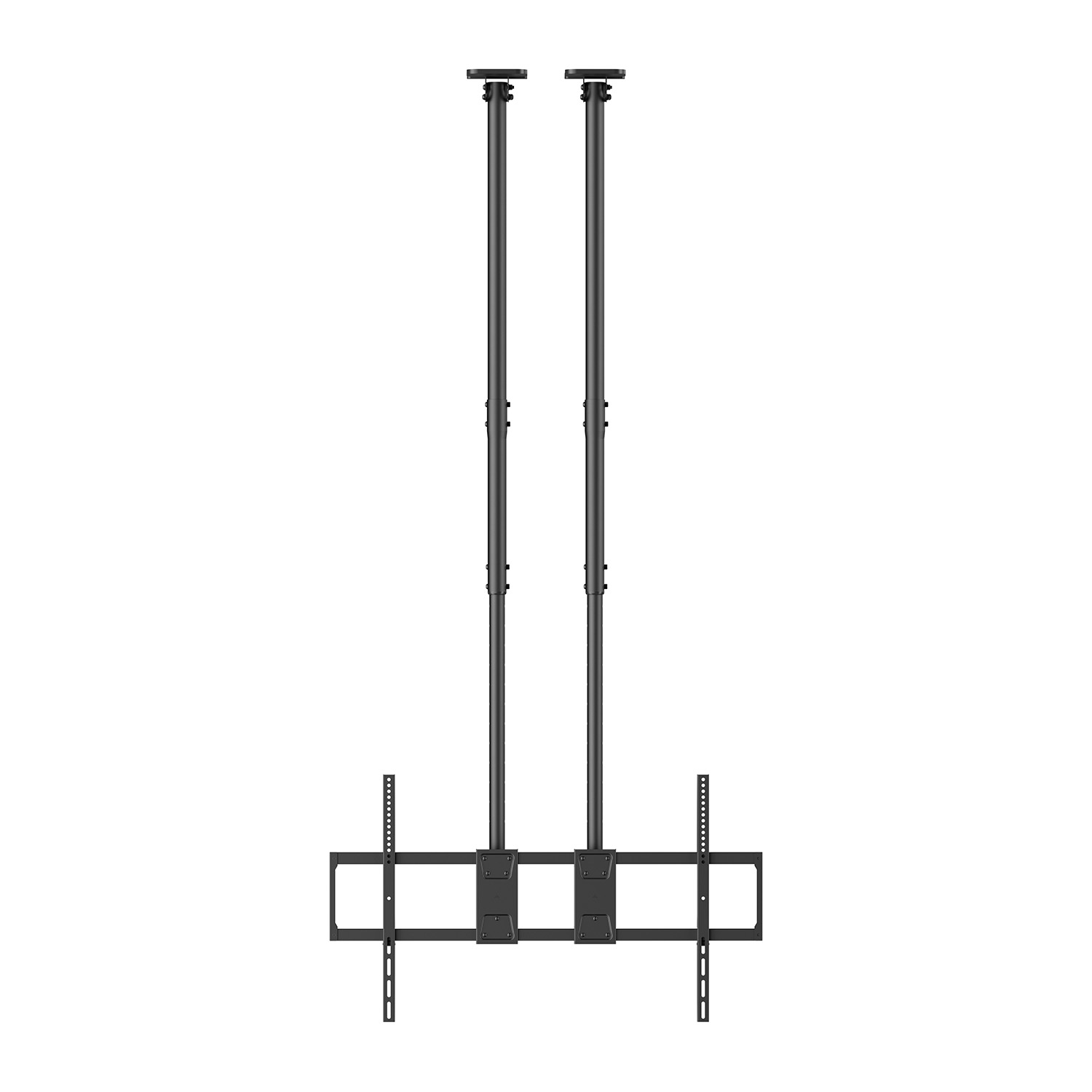

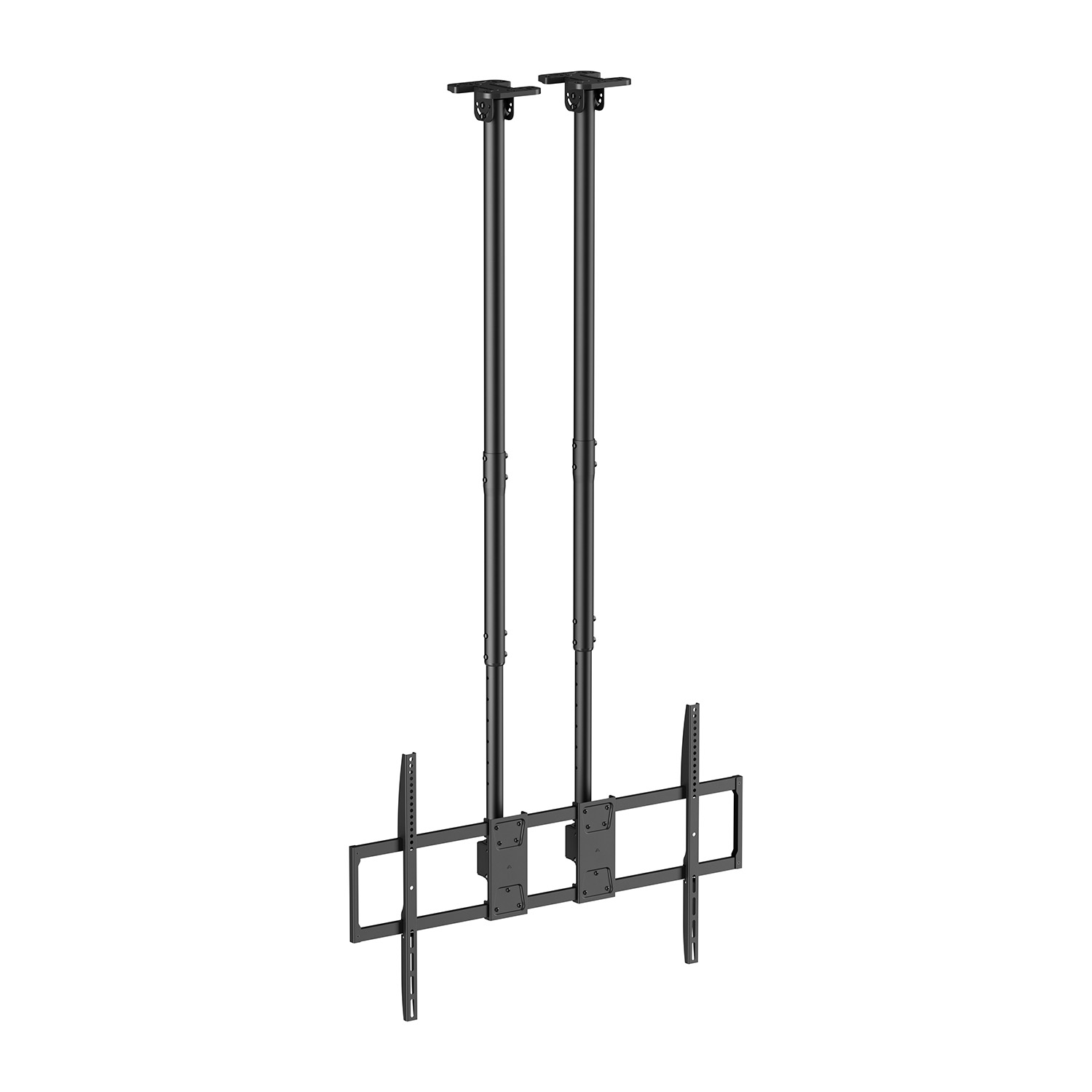

Napofix® CM287T – Tilt Ceiling Mount

Installation location: Ceilling
Installation type: Fixed
Series: Pro
REF: CM287T
EAN: 5603209002988
Screen size [inches]: from 55" to 120"

Product info

  • Product description
    • The Napofix® CM287T TV Tilt Ceiling Mount combines sophisticated engineering with minimalist design to offer unprecedented viewing freedom. It fits most 55-120'' TVs up to 120kg and VESA up to 1000x600. Designed to adapt to any environment, it is the ultimate solution for homes and commercial spaces seeking flexibility and style. Its ability to adapt to flat or sloped ceilings makes it exceptionally versatile. With a simple adjustment, set the ideal height between 1090mm and 2104mm and modify the screen tilt. The hidden cable management system complements its aesthetic, ensuring the focus remains where it matters: the picture. With the Napofix® CM287T TV Tilt Ceiling Mount, gain more space and flexibility. The ideal solution for optimized viewing and a modern environment.

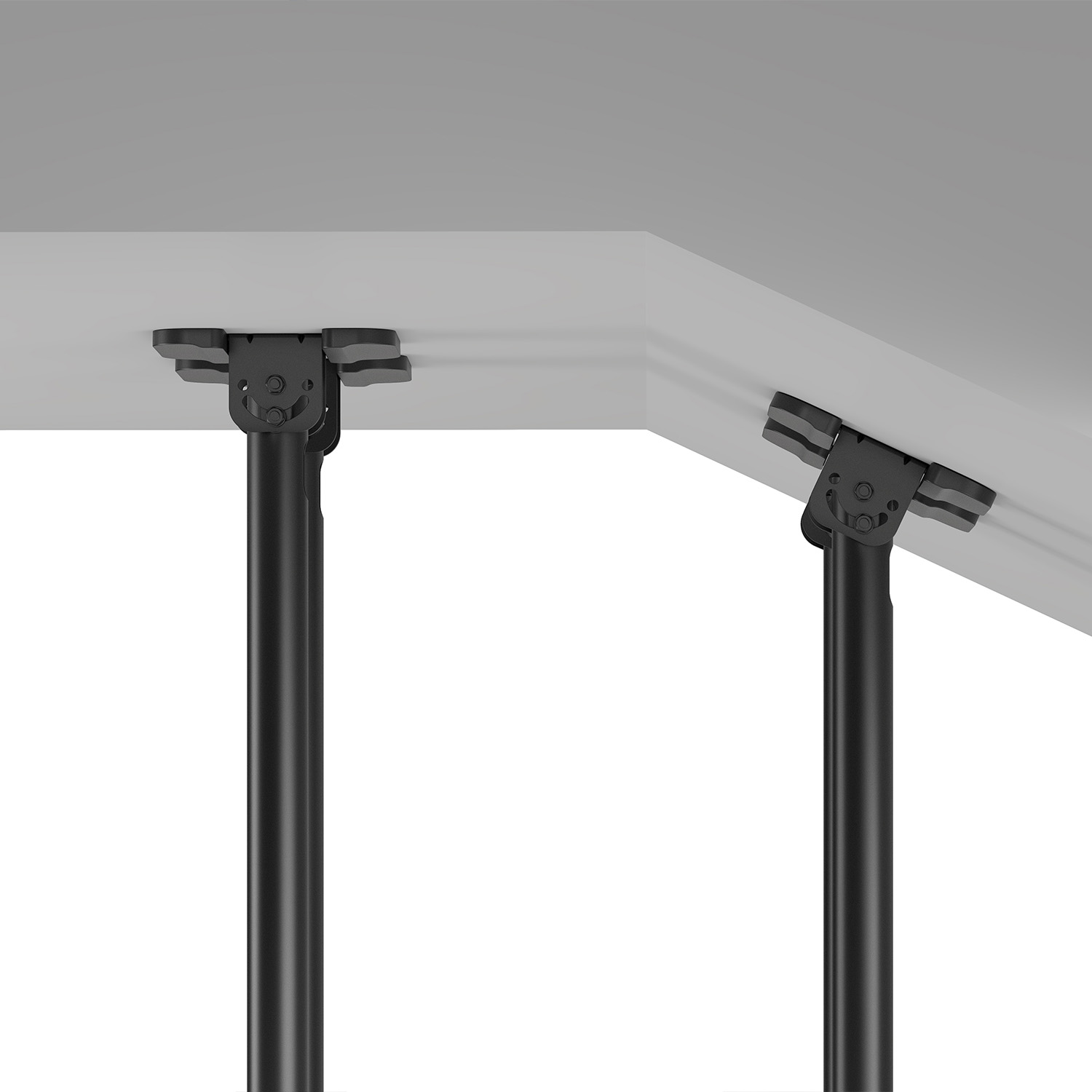

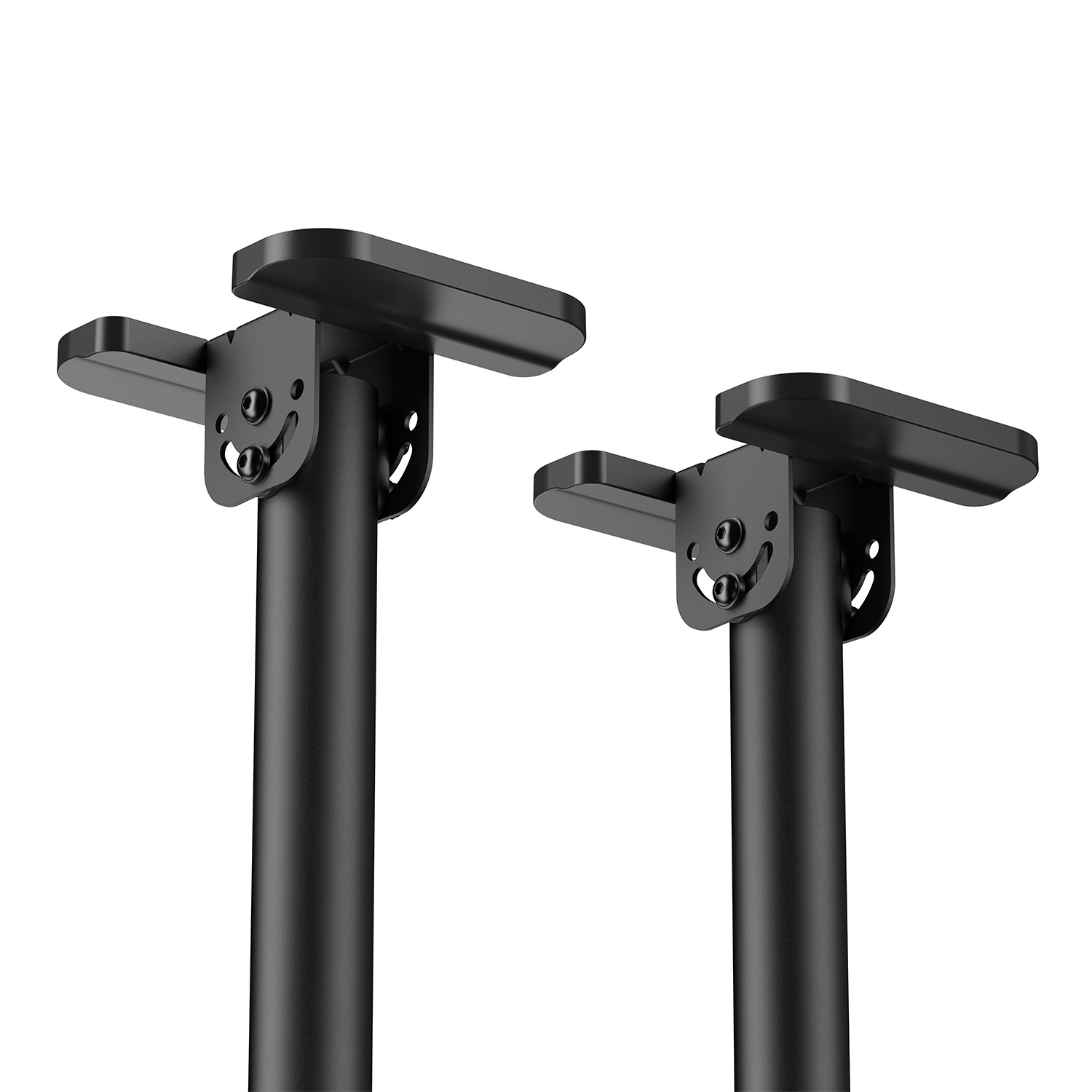

      ● Universal Compatibility: Its tilting ceiling plate is designed for secure installation on both flat and sloped surfaces, making it perfect for attics, rooms with high ceilings, or commercial spaces.

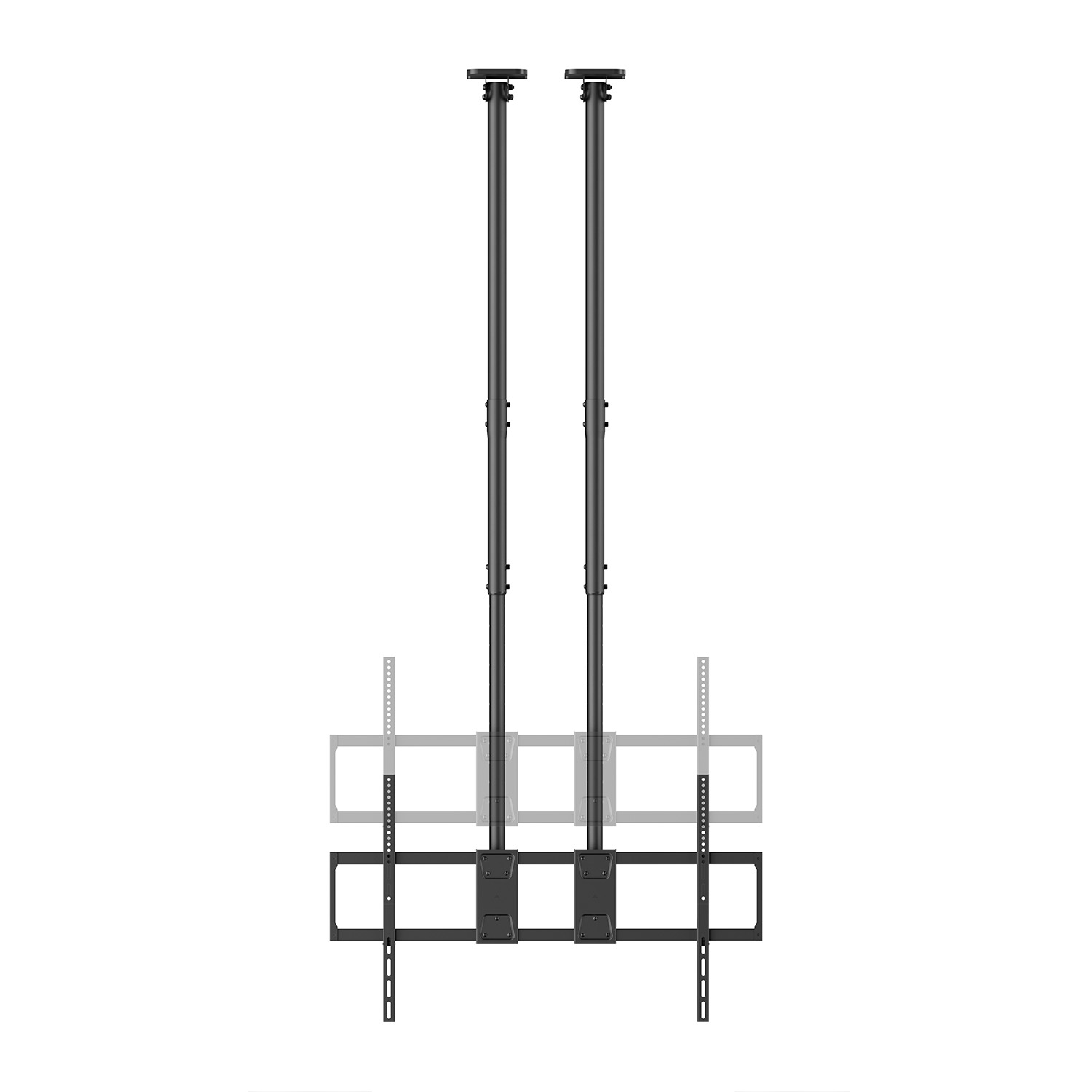

      ● Perfect Positioning: Adjust the height of your TV with precision (from 1090mm to 2104mm) and use the tool-free tilt adjustment to eliminate reflections and ensure the best viewing angle from any point in the space.

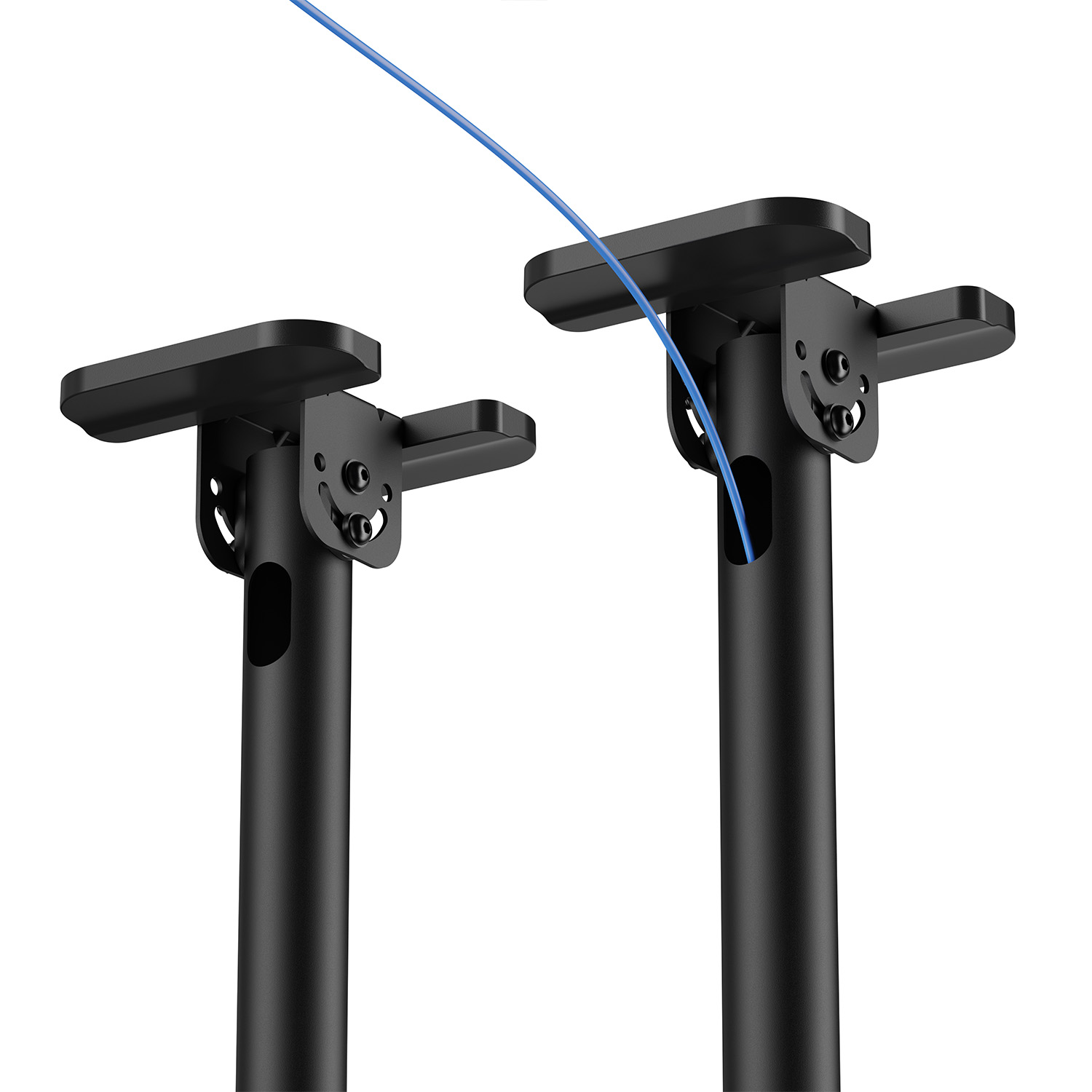

      ● Smart and Clean Design: Maintain the aesthetics of your space. The integrated cable management channel hides all wiring inside the pole, providing a professional and organized finish.

      ● Robustness and Security: Constructed with high-quality materials to support up to 120kg and compatible with VESA standards up to 1000x600, ensuring your TV is always safe.

  • Compatibilities
    • Minimum screen size: 55"
    • Maximun screen size: 120"
    • VESA Minimum: 400 x 200 mm
    • VESA Maximum: 1000 x 600 mm
    • Vesa: 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 400 x 500 mm, 400 x 600 mm, 500 x 200 mm, 500 x 300 mm, 500 x 400 mm, 500 x 500 mm, 500 x 600 mm, 600 x 200 mm, 600 x 300 mm, 600 x 400 mm, 600 x 500 mm, 600 x 600 mm, 700 x 200 mm, 700 x 300 mm, 700 x 400 mm, 700 x 500 mm, 700 x 600 mm, 800 x 200 mm, 800 x 300 mm, 800 x 400 mm, 800 x 500 mm, 800 x 600 mm, 900 x 200 mm, 900 x 300 mm, 900 x 400 mm, 900 x 500 mm, 900 x 600 mm, 1000 x 200 mm, 1000 x 300 mm, 1000 x 400 mm, 1000 x 500 mm, 1000 x 600 mm
    • Load capacity: 120 Kg
  • Adjustments

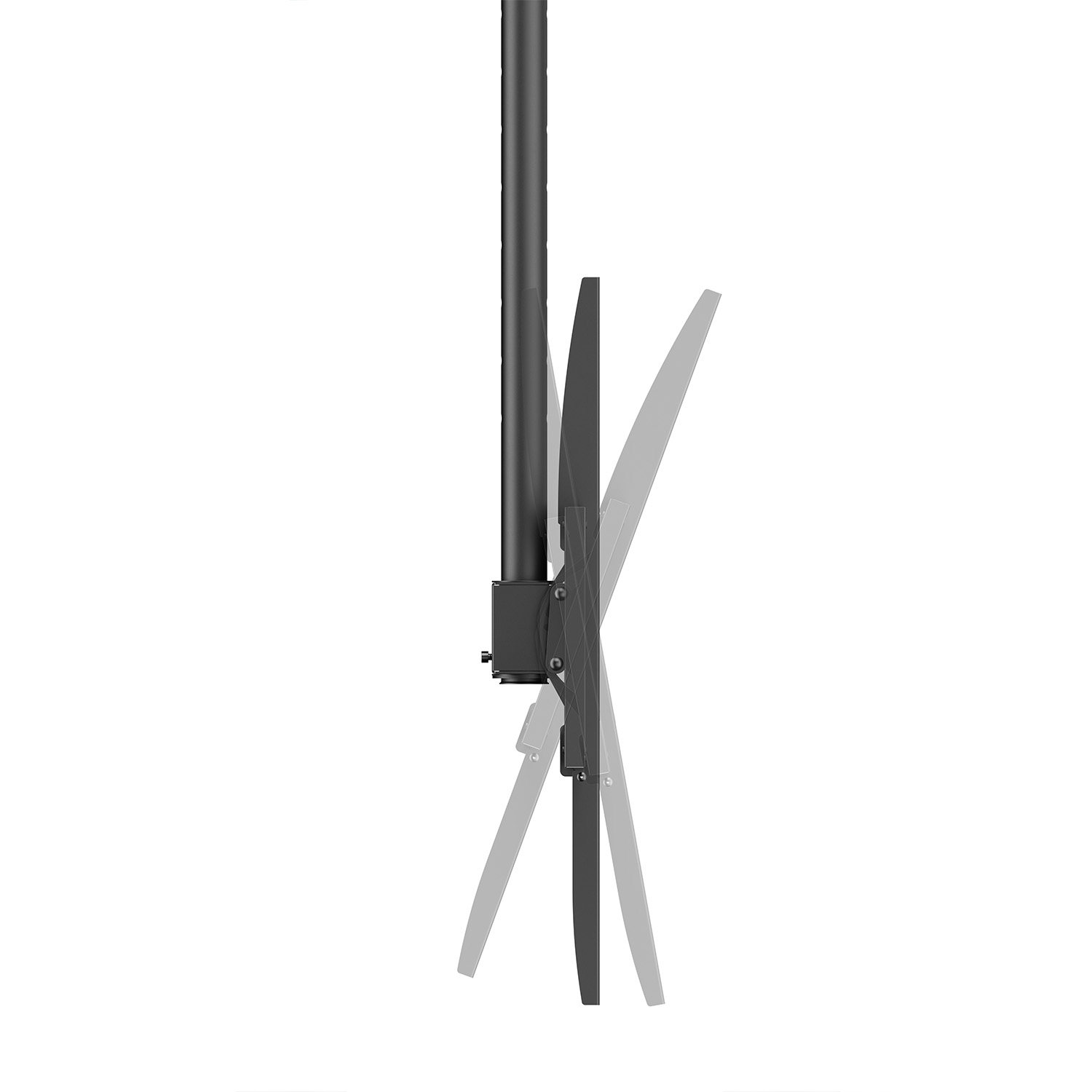

    • Tilt: +0°~-25°
    • Swivel: -
    • Rotation: -
    • Nivel: ±1°

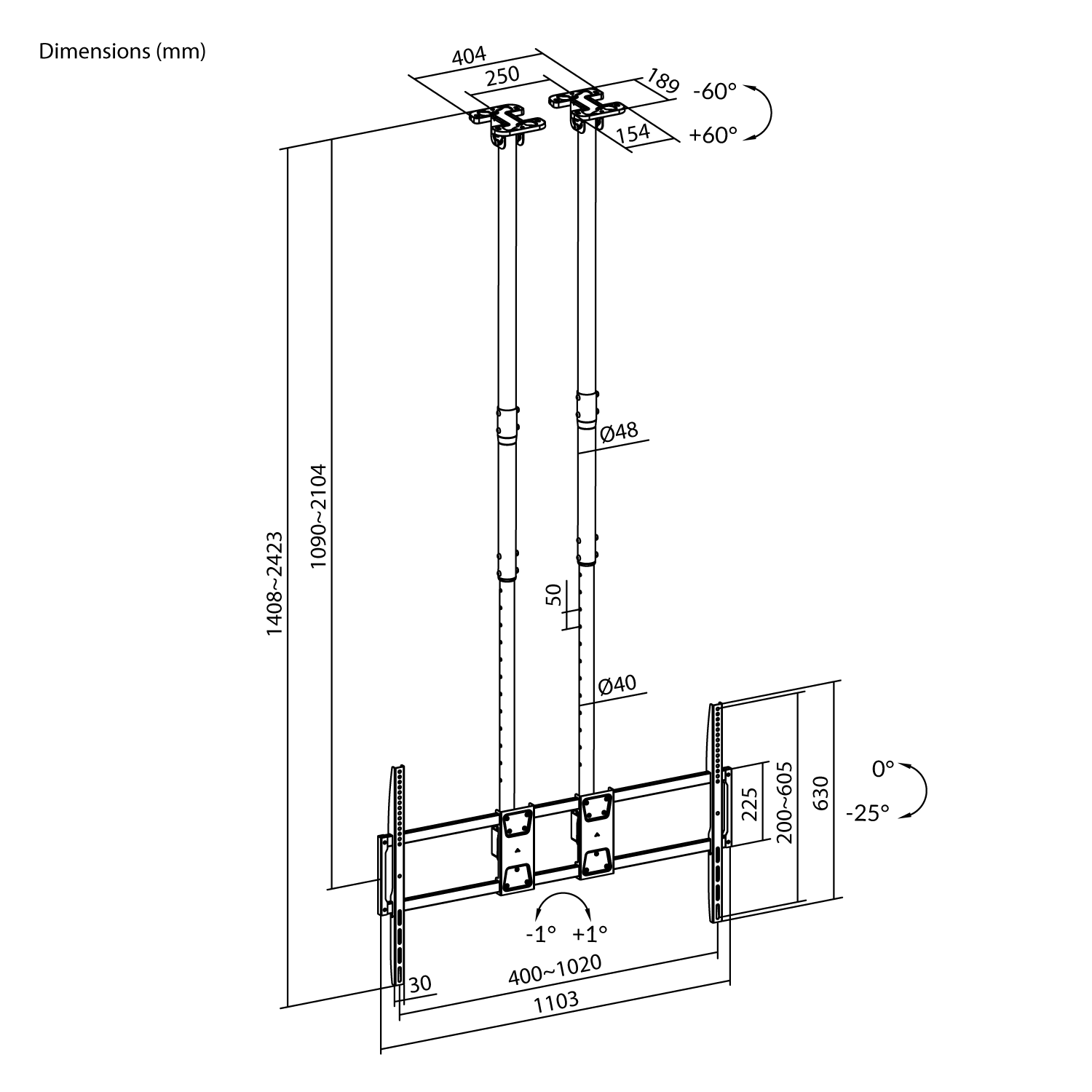

    • Height adjustment: 1090~2104 mm
    • Width adjustment: - mm
  • Features
    • Warranty: 3 years
    • Wheels: -
    • Detachable VESA: Yes
    • Strapes: -
    • Anti-Theft Design: -
    • Angled Ceiling: yes
    • Finishing: Epoxy
    • Main color: Black
  • Logistics

      Logistic data

      • Box type: Brown box
      • Number of unit boxes: 1
    • Box 1

      • Width: 118.0 cm
      • Depth: 25.5 cm
      • Height: 16.8 cm
      • Gross weight: 15.50 kg
      • Net weight: 13.90 kg
    • Box 2

      • Width: - cm
      • Depth: - cm
      • Height: - cm
      • Gross weight: - kg
      • Net weight: - kg
    • Master Box

      • Type of master box: -
      • Number of unit boxes: -
      • Width: - cm
      • Depth: - cm
      • Height: - cm
      • Gross Weight: - kg
      • Net Weight: - kg
