Napofix® DS1400G-M – Motorized Desk Structure

Product info

• Product description

  • Napofix® DS1400G-M Motorized Frame: The Foundation of Your Ergonomic Desk

    Create your ideal workspace with the Napofix® DS1400G-M from the Ergo Series, the motorized desk frame that is the perfect foundation for your desk. Designed for flexibility and ergonomics, this frame allows you to assemble a custom-sized desk with the ability to easily switch between sitting and standing positions.



    Key Features

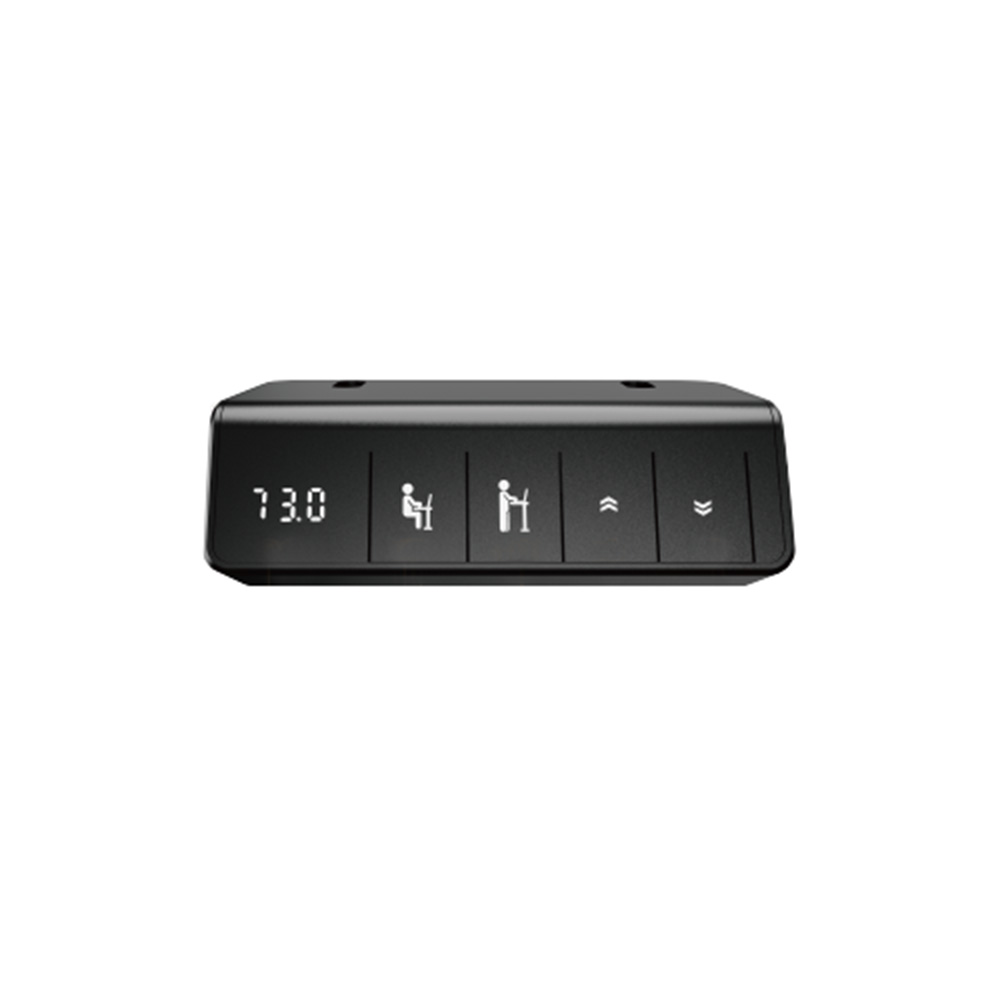

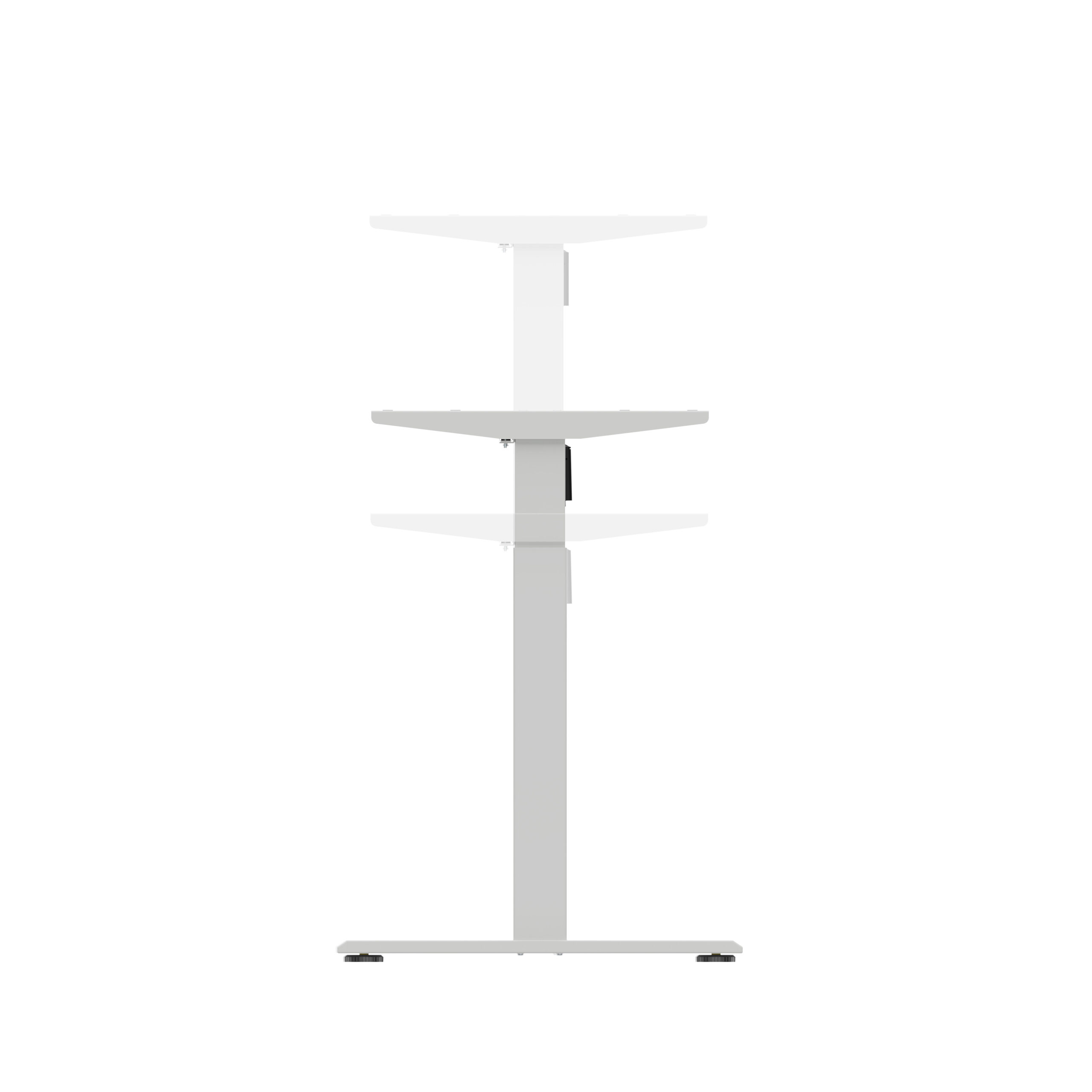

    Motorized Height Adjustment: Customize your desk for optimal comfort. The height adjustment is smooth and precise via a control panel with LED indicators, covering a range from 700 mm to 1150 mm.

    Width Flexibility: Adapt to different desk tops. The frame features a width adjustment (between the legs) from 1020 mm to 1400 mm, ensuring versatility in assembly.

    Robust Construction: Made from high-quality Steel with an epoxy finish, this frame is built to last.

    High Load Capacity: Safely supports up to 80 kg, ideal for all your IT equipment, monitors, and work accessories.



    Why Choose the Napofix® DS1400G-M?

    The Napofix® DS1400G-M is not just a frame; it's an investment in your health and productivity. By allowing a change in posture throughout the day, it helps reduce fatigue and improve focus. It is the perfect solution for anyone seeking the functionality of a height-adjustable desk within the excellence of the Napofix Ergo Series.

• Compatibilities
  • Minimum screen size: -"
  • Maximun screen size: -"
  • VESA Minimum: - mm
  • VESA Maximum: - mm
  • Vesa: - mm
  • Load capacity: 80 Kg
• Adjustments
  • Tilt: -
  • Swivel: -
  • Rotation: -
  • Nivel: Yes
  • Depth: - mm

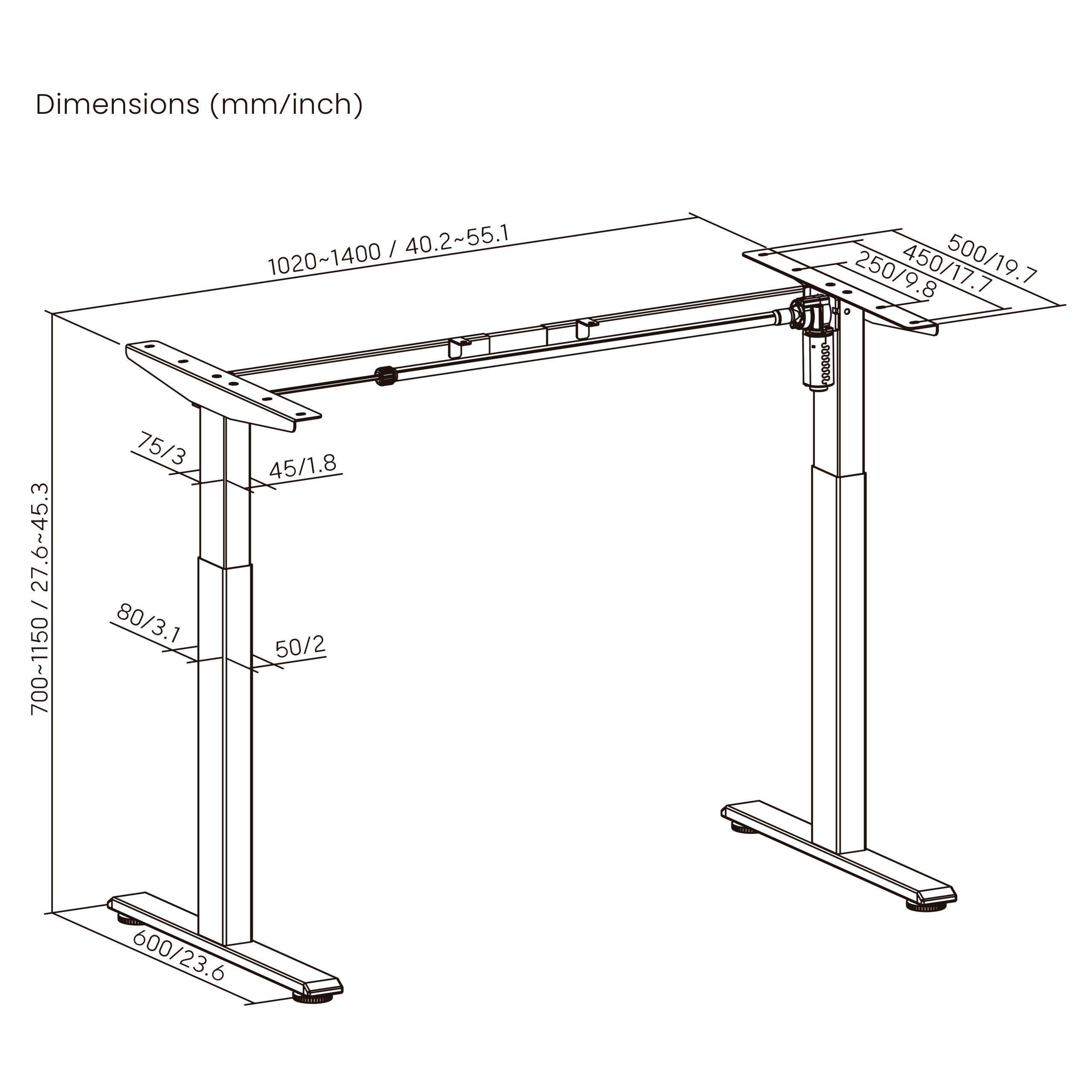

  • Height adjustment: 700~1150 mm
  • Width adjustment: 1020~1400 mm
• Features
  • Warranty: 3 years
  • Wheels: -
  • Detachable VESA: -
  • Shelf and Tray: -
  • Strapes: -
  • Anti-Theft Design: -
  • Angled Ceiling: -
  • Finishing: Epoxy
  • Main color: Grey
• Logistics

  Logistic data

  • • Box type: Brown box
    • Number of unit boxes: 1

  Box 1

  • • Width: 81.0 cm
    • Depth: 26.2 cm
    • Height: 15.0 cm
    • Gross weight: 17.80 kg
    • Net weight:

  Box 2

  • • Width: - cm
    • Depth: - cm
    • Height: - cm
    • Gross weight: - kg
    • Net weight: - kg

  Master Box

  • • Type of master box: -
    • Number of unit boxes: -
    • Width: - cm
    • Depth: - cm
    • Height: - cm
    • Gross Weight: - kg
    • Net Weight: - kg
• Downloads
  • Technical Datasheet
  • User Manual
